Features:
2 Universal AC input / Full range.
2 Built-in active PFC function, PF≧0.95.
2 Forced air cooling by built-in DC Fan with fan
speed control function.
2 Protections: Short circuit/Overload/Over voltage/Over temperature.
2 100% full load burn-in test.
2 Over 89% efficiency
2 Optional conformal coating.
2 LED indicator for power on.
2 3 years warranty
Applications:
2 Factory control or automation apparatus.
2 Test and measurement instrument.
2 Laser related machine.
2 Burn-I facility.
2 RF application.
Description:

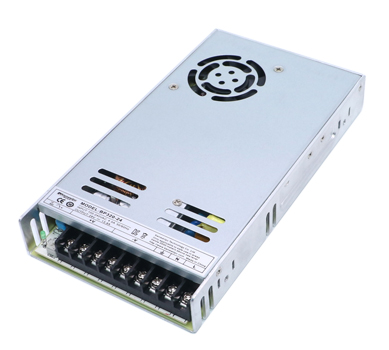

2 BP320-24 is a 320W single output enclosed type
AC/DC power supply. This series operates for 88~264VAC
Input voltage and offers the models with the DC output mostly
demanded from the industry. Each model is
Cooled by the built-in fan with fan speed control, working for the temperature up to 70℃.
INPUT SPECIFICATIONS：
|
Input voltage range: 88-264Vac |
|
Input frequency range: 47-63Hz |
|
Input current: 4A/115Vac
2A/230Vac |
|
power factor: PF>0.95/230Vac PF>0.98/115Vac |
|
Inrush current (Typ.): 20A/115Vac
40A/230Vac |
|
Leakage
current: ﹤1mA/240Vac |
|
Input efficiency(Typ.): 89% |
OUTPUT SPECIFICATIONS：
|
Output voltage: 24VDC |
|
Output current 0-13.4A |
|
Output voltage
tolerance ±1% |
|
Ripple &
Noise (mV) 150mVp-p |
|
OVP 27.6-32.4V |
|
SCP
Yes |
|
Rise time 50mS |
|
Overshoot ±10% |
GENERAL SPECIFICATIONS：
|
Operating temperature: -30 to +70 degree |
|
Storage temperature: -40 to +85 degree |
|
Cooling:Fan
Cooling: 10,000 feet max. |
|
Relative
humidity: 20 to 95% RH |
|
Vibration: 10-500 Hz,2 G 10min./1cycle,60min. |
|
Hold up time: 8ms |
|
Weight: 900g |
|
MTBF(MIL-HDBK-217): 192.9K hrs min. |
|
Life: >5years |
|
Failure rate: <0.5% |
|
Size: 215*115*30mm |
